rotary tank washing nozzles for tank cleaning

 Tip: click the picture to enlarge.

Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle

Design feature:

  • Very high cleaning performance already at low pressure
  • Driven and lubricated by the cleaning fluid
  • Systematically cleans the entire tank interior(360°)
  • Robust, low-maintenance stainless steel construction
  • 100% thoroughly clean,every time
  • Optimized structural design makes water jet with greater impact
  • Excellent seal design, only 3% leakage of water
  • Designed with a separate gearbox,uneasy to get clogging


Model DG5 3D rotating tank cleaning nozzle
Material 316L SS
Max. tank diameter  5m
Operating pressure 5-20Bar
Tempreture range 95°
Installation Vertically facing downward
Application

Cleaning and rinsing of large tanks

i.e. chemical industry,drink and food industry.



Programmed rotation machines:

The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.



The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.



Application:







DG5 rotating tank cleaning nozzle are suitable for small tanks, such as fuel ethanol, beer, chemical, industrial fermentation industry and the need for high impact cleaning occasions.





Product Photos:

Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle



Performance data:

Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle



Dimensions of DG5 tank cleaning nozzle:

Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle









Cleaning process:

Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzle

Application of DG20 3D rotary tank cleaning nozzle:

Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzleMax. spray diameter 5m,DG5 3D rotating tank cleaning nozzle

 Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzleMax. spray diameter 5m,DG5 3D rotating tank cleaning nozzle

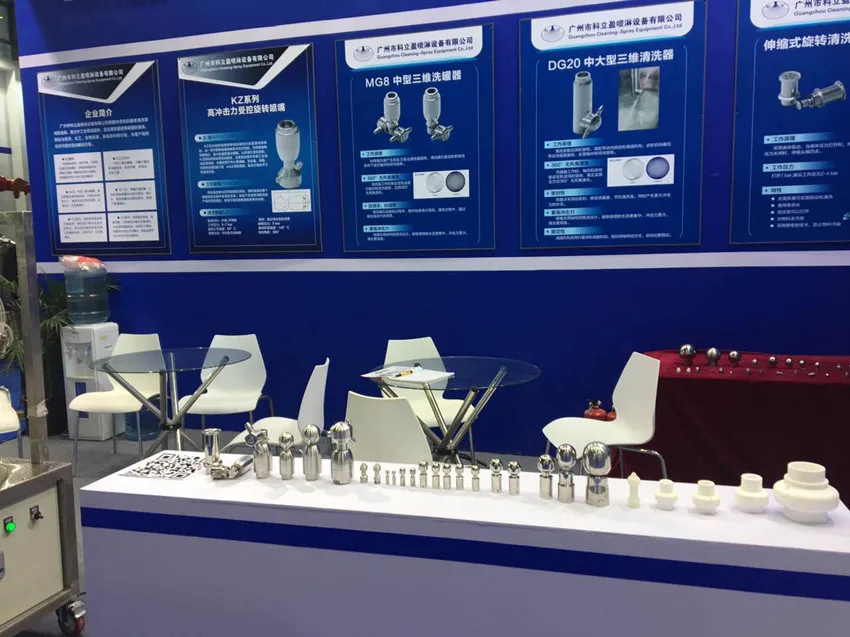

Exibition photos:



Max. spray diameter 5m,DG5 3D rotating tank cleaning nozzleMax. spray diameter 5m,DG5 3D rotating tank cleaning nozzle
Model DG5 3D rotating tank cleaning nozzle
Material 316L SS
Max. tank diameter  5m
Operating pressure 5-20Bar
Tempreture range 95°
Installation Vertically facing downward
Application

Cleaning and rinsing of large tanks

i.e. chemical industry,drink and food industry.
